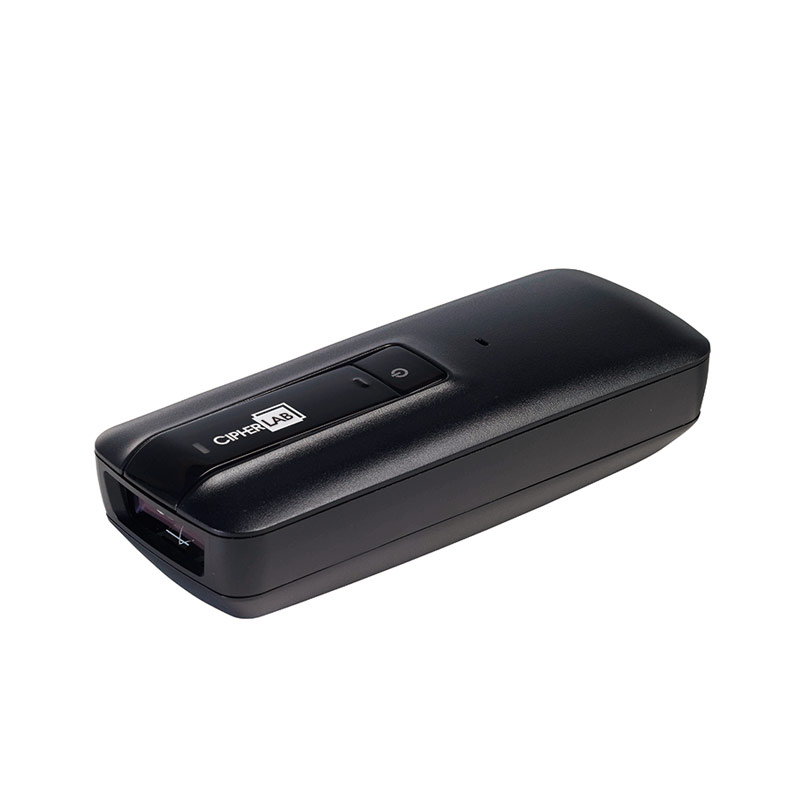

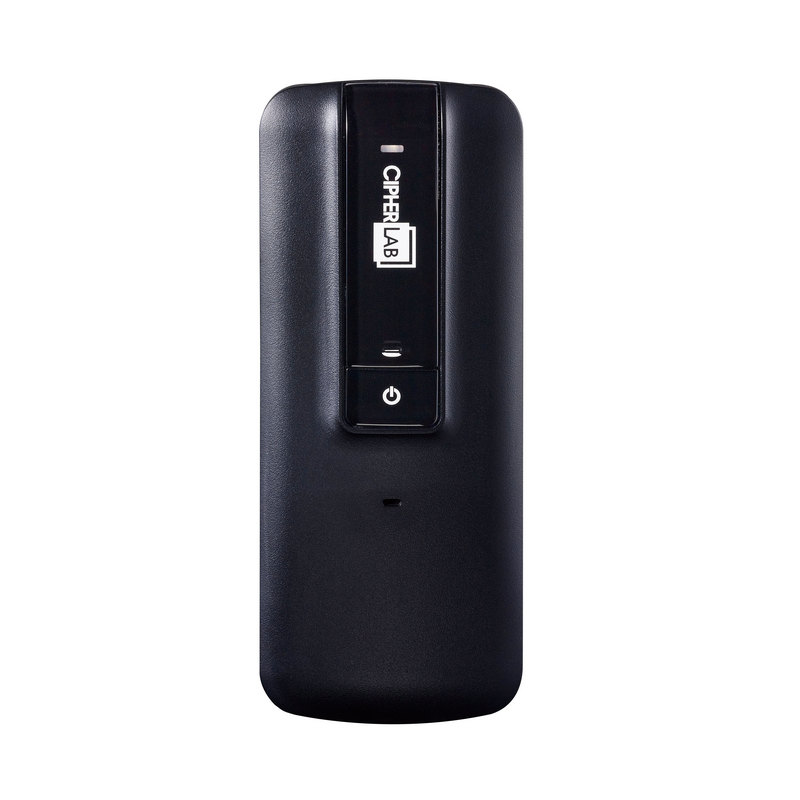

Cipherlab 1600 Series

฿0.00 ฿ราคาพิเศษ

Item 1662 1663 1664
Connectivity Bluetooth? Class 2 (2.4 GHz) Version 2.1 +EDR
Data capture Bluetooth? laser scanner Bluetooth? linear imager scanner Bluetooth? 2D imager scanner
Optical sensor Laser 2500 pixels 752 x 480 pixels
Light source Visible laser diode at 650 nm 625 ?5 nm Red LEDs (2x)
Resolution 4 mil 3 mil 3 mil - 1D barcode / 5 mil - 2D barcode
Depth of field 2 to 42 cm / 0.8 to 16.5 in 2.4 to 38 cm / 0.9 to 15 in. Code 39 3 mil: 6.9 to 10.7 cm / 2.7 to 4.2 in.
Code 39 5 mil: 3.6 to 18.5 cm / 1.4 to 7.3 in.
UPCA 13 mil: 4.0 to 30.5 cm / 1.6 to 12 in.
PDF417 5 mil: 7.1 to 11.4 cm / 2.8 to 4.5 in.
PDF417 6.67 mil: 4.8 to 17.5 cm / 1.9 to 6.9 in
Scanning angle Pitch ? 65?, Skew ? 50? Pitch ?70?, Skew ?70? Pitch ? 60?, Skew ? 60?
PCS Minimum 30%
Scan rate 100 scans / second 200 scans / second 60 scans / second
Barcodes supported Codabar, Code 32, Code 39, Trioptic Code 39, Code 93, Code 128, Industrial 2 of 5, Interleaved 2 of 5, ISBT-128, Italian Pharmacodes, MSI Plessey, Bookland EAN, GS1-DataBar, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13 Codabar, Code 39, Code 93, Code 128, GS1 DataBar(RSS), Industrial 2 of 5, Italian and French Pharmacodes, Interleave 2 of 5, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, and more 1D: All major codes
2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode
Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)
Color Black
Size 11.3 x 4.5 x 3.0 cm / 4.4 x 1.8 x 1.2 in.
Weight 100 g / 3.53 oz 106 g / 3.7 oz.
Impact resistance IP42, 1.5 m / 4.9 ft. multiple drops onto concrete

Brand

Cipherlab
Model

1600 Series
