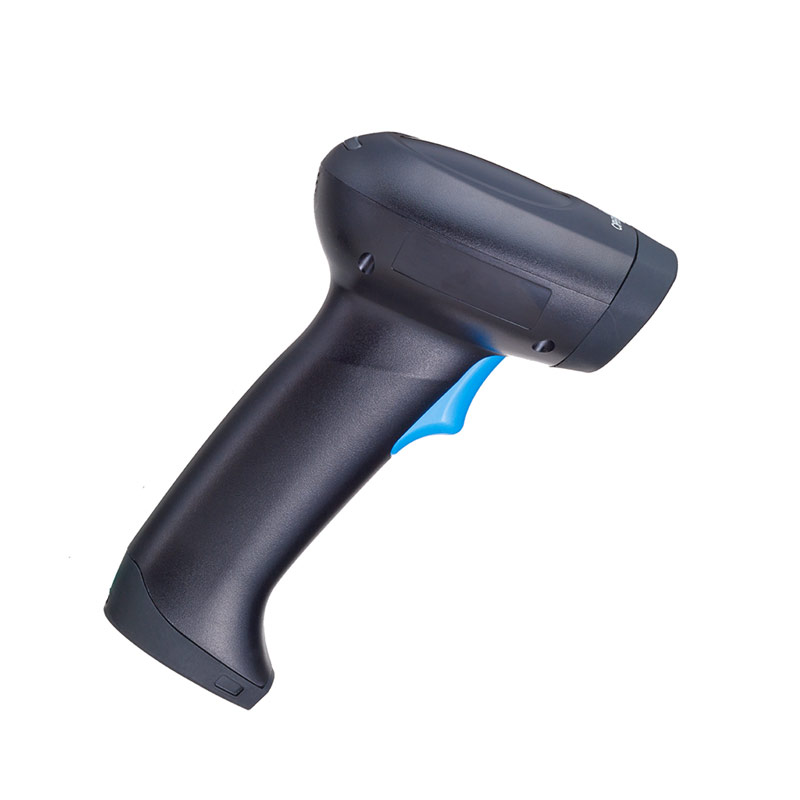

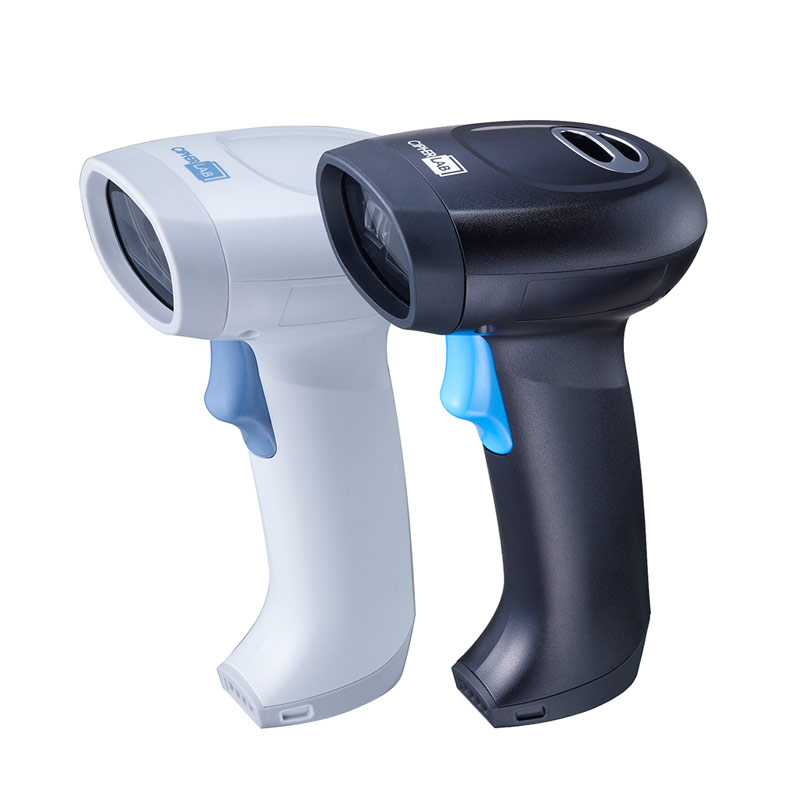

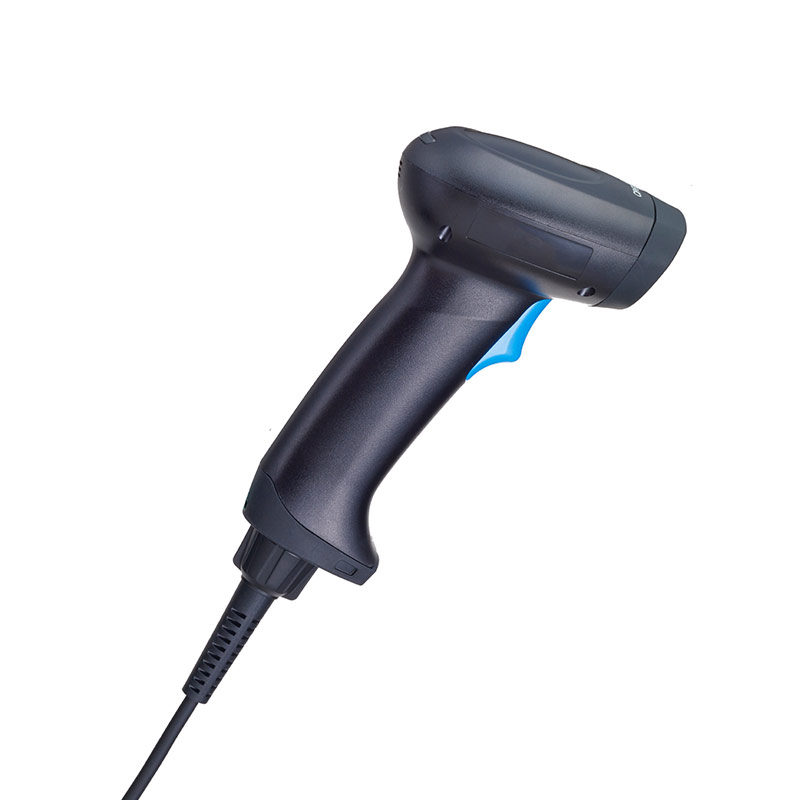

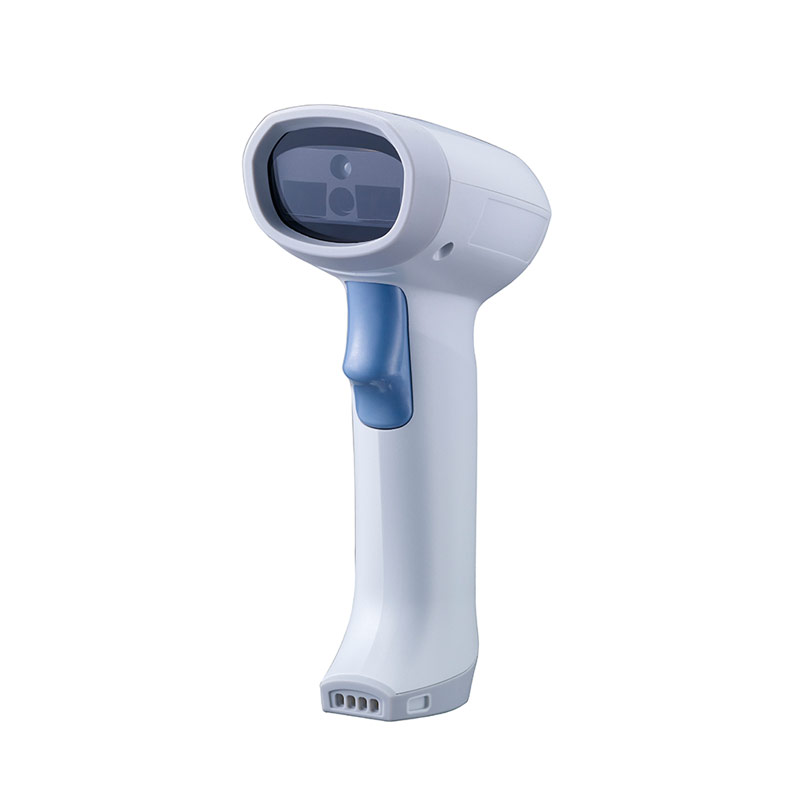

Cipherlab 2500 Series

฿0.00 ฿ราคาพิเศษ

Item 2500 2560 2504MR 2564MR
Data capture Linear Imager 2D Imager
Connectivity Corded Bluetooth? V4.0 Dual mode (2.1 + EDR/ BLE) Corded Bluetooth? V4.0 Dual mode (2.1 + EDR/ BLE)
Optical sensor CCD Linear Sensor
2500 pixels		 CMOS Image Sensor
1280x960 pixels
Light source Red LEDs 625 nm (2X) Warm White LEDs (2x)
Resolution 3 mil 3 mil- 1D barcode / 5 mil - 2D barcode
Depth of field Code 39 3 mil: 3 to 10 cm / 1.2 to 3.9 in.
Code 39 5 mil: 2 to 14 cm / 0.8 to 5.5 in.
UPCA 13mil: 0.5 to 38 cm / 0.2 to 15 in.
Code 39 20mil: 1.5 to 60 cm / 0.6 to 23.6 in		 Code 128 5 mil : 18.5 to 37.5 cm / 7.3 to 14.8 in.
PDF 417 5 mil: 21 to 26.5 cm / 8.3 to 10.4 in.
Data Matrix 7.5 mil: 17 to 35 cm / 6.7 to 13.8 in.
Data Matrix 10 mil: 15.5 to 45.5 cm / 6.1 to 17.9 in.
UPCA 13 mil: 8 to 94 cm / 3.2 to 37 in.
Code 39 100 mil: 28 to 425 cm / 11 to 167.3 in.
Data Matrix 160 mil: 29.5 to 384 cm / 11.6 to 151.2 in.
Scanning angle Pitch ? 70?, Skew ? 70? Pitch ? 60?, Skew ? 60?
PCS 15% 20%
Scan rate 578 scans/ second 60 scans/second
Hands-free scanning Auto-sense and continuous modes Auto-sense and presentation modes
Barcodes supported Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, and more 1D: All of the barcodes that 2500 series 1D scanners can support except French Pharmacodes, Plessey and Telepen
2D: PDF417, MicroPDF417, Composite, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Han Xin Code
Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)
Color Black, Register White
Size 16.1 x 6.6 x 9.6 cm / 6.3 x 2.6 x 3.8 in.
Weight 145 g / 4.9 oz 185g / 6.5 oz 166 g / 5.9 oz. 198g / 7.0 oz.
Impact resistance 1.8 m multiple drops onto concrete, 1000 (1 m) tumbles. IP65

Brand

Cipherlab
Model

2500 Series
